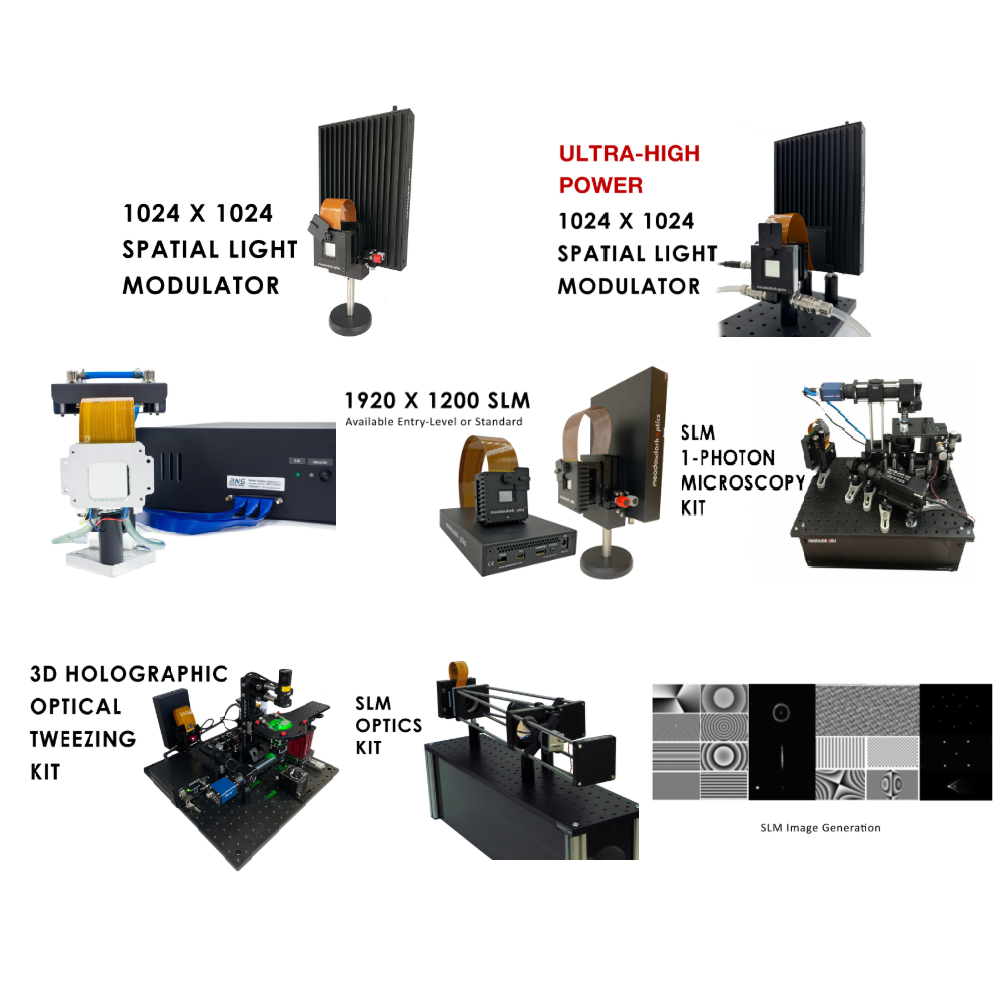

Meadowlark - Spatial Light Modulators

판매가: 0원

브랜드: Meadowlark Optics

구매혜택: -
할인 :
M
적립 마일리지 :

: High Diffraction Efficiency

: Customizable liquid crystal (specific for your application)

: High-Speed Addressing

: Large number of phase Levels

: High Optical Resolution

: Unique Modulator (not a display)

: Wide Wavelength Range from Visible to IR (ask us about our MWIR SLMs)

Meadowlark - Spatial Light Modulators

0원

총 상품금액

총 할인금액

Total

5,000원 더 구매하면 무료 배송!

무료 배송!(2,500원을 절약했어요.)

0원

50,000원

배송비 계산 기준

바로구매

상세정보
교환및반품
상품후기 (0)
상품문의 (0)

Why Choose Meadowlark Optics Spatial Light Modulators?

High Diffraction Efficiency
Customizable liquid crystal (specific for your application)
High-Speed Addressing
Large number of phase Levels
High Optical Resolution
Unique Modulator (not a display)
Wide Wavelength Range from Visible to IR (ask us about our MWIR SLMs)

A spatial light modulator (SLM) dynamically manipulates optical wavefronts by controlling the amplitude, phase, or polarization of light. These devices serve as programmable masks that alter light patterns across two dimensions, enabling precise, application-specific modulation. SLMs find use in optical processing, data routing, beam shaping, and information display, among other applications. They operate using different methods and materials, with liquid crystals (LCs) being a common choice due to their high birefringence and low-voltage operation. This allows for significant optical effects in thin layers, making LC-based SLMs highly efficient.

SLMs are typically available in two main operating modes: transmissive and reflective. The choice between these depends on factors such as the wavelength range, optical architecture, and performance requirements. Transmissive SLMs consist of a nematic liquid crystal layer sandwiched between transparent conductive windows, where individual pixels are electrically controlled to modulate light passing through. Reflective SLMs, often built on liquid crystal on silicon (LCOS) technology, feature a reflective coating—such as aluminum or dielectric coatings—that enhances diffraction efficiency and image quality by reflecting the modulated light.

At the core of an SLM’s function is a liquid crystal layer whose refractive index can be electrically tuned by applying voltages across pixels arranged in a periodic structure with a defined pixel pitch. This modulation induces a phase delay or phase shift in the reflected or transmitted light, allowing fine control over the phase response of the light waves. Key specifications such as fill factor, the ratio of active pixel area to total pixel pitch, and spatial resolution critically influence device performance. The ability of liquid crystal SLMs to provide continuous phase levels enables complex field modulation and the creation of computer-generated holograms, which are essential for advanced applications like holographic beam shaping and single-channel digital holography, as explained in detail in spatial light modulation principles.

These capabilities make SLMs indispensable tools for R&D laboratories, universities, optical engineers, and manufacturers across aerospace, defense, microscopy, semiconductor, medical devices, and telecommunications sectors. They facilitate high-speed, high-resolution optical processing and custom beam control spanning visible to infrared wavelengths, aligning with Meadowlark Optics’ broader polarization solutions and components portfolio. Meadowlark Optics specializes in liquid crystal on silicon (LCOS) spatial light modulators that combine exceptional speed, efficiency, and resolution to deliver accurate and reliable optical modulation.

The versatility of SLMs extends to numerous fields, including adaptive optics, volumetric imaging, optogenetics, and holographic tweezing research, as well as optical communication systems, STED microscopy for super-resolution imaging, and femtosecond pulse compression. Their ability to simultaneously modulate amplitude and phase enables sophisticated light-field manipulation, which is crucial in optical trapping experiments and laser beam shaping. Optimizing diffraction efficiency by designing blazed gratings and the grating pitch within the SLM’s periodic structure further enhances brightness and intensity control.

Meadowlark Optics offers a broad range of high-performance spatial light modulators characterized by exceptional phase stability, fast frame rates, and high diffraction efficiency. These devices support applications spanning UV to MWIR wavelengths and provide tailored solutions for researchers and OEMs who require precise optical modulation with minimal phase ripple and superior spatial resolution, which are compared in detail in our spatial light modulator selection guide.

Get the SLM Selection Guide
