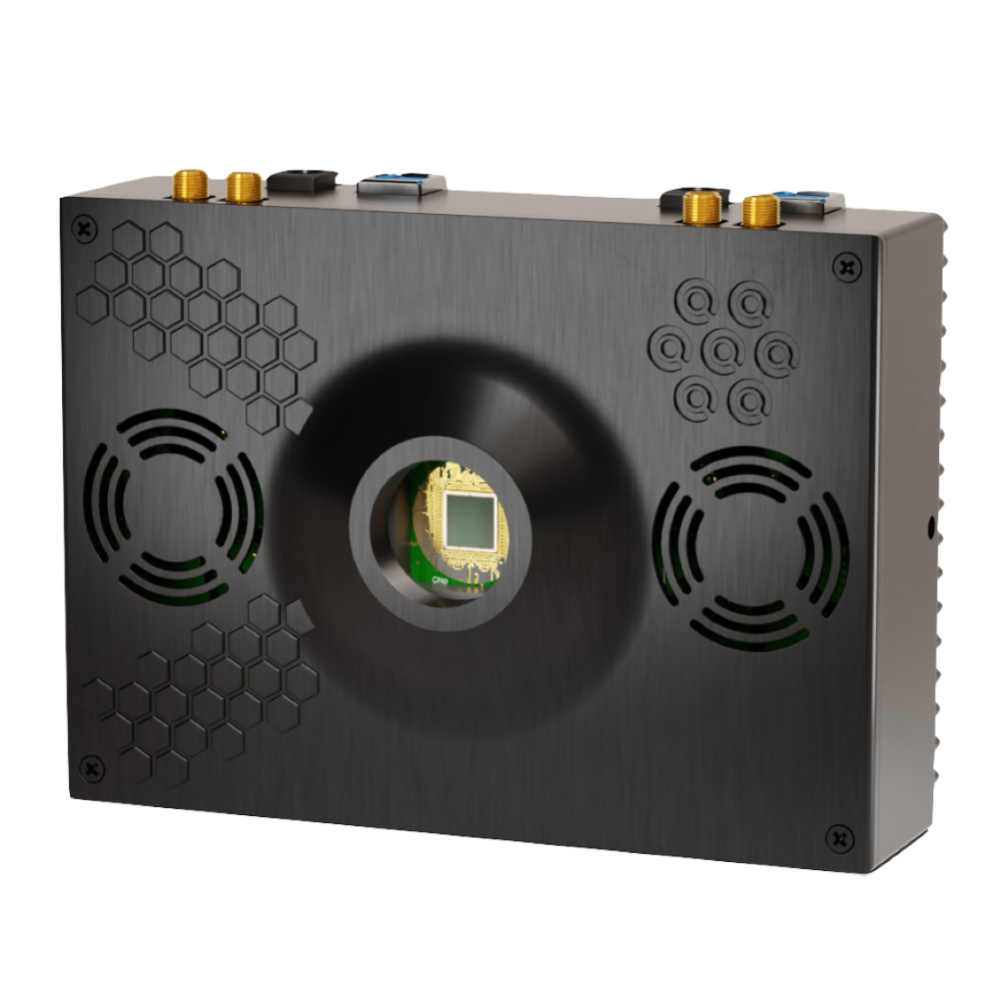

SPAD 512 - A high-speed single-photon camera.

SPAD 512 is a camera integrating a 512×512 SPAD image sensor. Up to 100,000 fps in 1-bit mode enable high-speed imaging (photon-counting). Fine time gating enables the study of time-varying samples.

판매가: 0원

브랜드: PI IMAGING

구매혜택: -
할인 :
M
적립 마일리지 :

모델명: SPAD512, SPAD512², SPAD512S

원산지: Switzerland

SPAD 512 - A high-speed single-photon camera.

0원

총 상품금액

총 할인금액

Total

5,000원 더 구매하면 무료 배송!

무료 배송!(2,500원을 절약했어요.)

0원

50,000원

배송비 계산 기준

바로구매

상세정보
교환및반품
상품후기 (0)
상품문의 (0)

SPAD 512

A high-speed single-photon camera.

Widefield camera

Wide detection spectra and low noise

Time gating

Plug and play

SPAD 512, a camera for high-speed photon counting

SPAD 512 is a camera integrating a 512×512 SPAD image sensor. Up to 100,000 fps in 1-bit mode enable high-speed imaging (photon-counting).
Fine time gating enables the study of time-varying samples.

*Other product names: SPAD512, SPAD512², SPAD512S
For consistency and clarity, note that these names refer to the same product.

Widefield camera

Released in 2021, SPAD 512 is the first commercially available SPAD camera in the world. The camera features a 512×512 SPAD image sensor for both photon-counting and photon-time gating applications. This camera is ideal to replace scientific CMOS and EMCCD cameras in widefield microscopy and high-speed imaging applications.

Wide detection spectra and low noise

Our single-photon detectors are fabricated in a state-of-the-art CMOS process and offer an ultra-low dark count rate of less than 25 cps. Microlenses enhance the sensor’s detection efficiency.

Time gating

The sensor features time gating to study time varying signals of interest, such as FLIM. This makes it a perfect addition to any widefield FLIM microscopy setup.

Plug and play

The system requires just a 5V power adapter and two USB3 cables to run. For full flexibility, 2 additional control lines can be connected to the SMA connectors. The industry standard C/CS-mount optical port and the M4 screw mounting positions offer a flexible integration into any existing optical setup.

The detector is bundled with an intuitive software interface. The software gives easy access to all functionalities offered by our detectors, allows for fast prototyping and makes acquiring widefield single-photon data easier than ever.

For the advanced users, we offer full remote control through a standard TCP/IP interface. This enables the user to take full control of the system from any TCP/IP capable software package, such as Matlab, Octave, Labview and Python.

Technical specifications

Properties	SPAD 512
Array size	512×512 pixels
Peak detection probability	50% @ 520 nm
Wavelength window	400—950 nm
Pixel pitch	16.38 um
Active area size	6×6 um or 16×16 um with microlenses
Microlens efficiency (collimated light)	>50%
Median dark count rate	<25 cps
Maximum system bandwidth (2× USB-3)	6 Gbps
Maximum frame rate (1-bit, 100k frames burst)	70,000 fps standard system 100,000 fps high-speed system
Maximum frame rate (4-bit, semi-continuous)	4,300 fps standard system 6,200 fps high-speed system
Maximum frame rate (6-bit, continuous)	1,080 fps standard system 1,600 fps high-speed system
Maximum frame rate (7-bit, continuous)	540 fps standard system 800 fps high-speed system
Maximum frame rate (8-bit, continuous)	270 fps standard system 400 fps high-speed system
Minimum gate width	6 ns
Minimum gate step size	17 ps
Power consumption	5-10 W
External SMA triggers	frame/gate trigger laser clock
Peltier and air cooling	✔
Protective glass window	✔
Robust metal enclosure	✔
