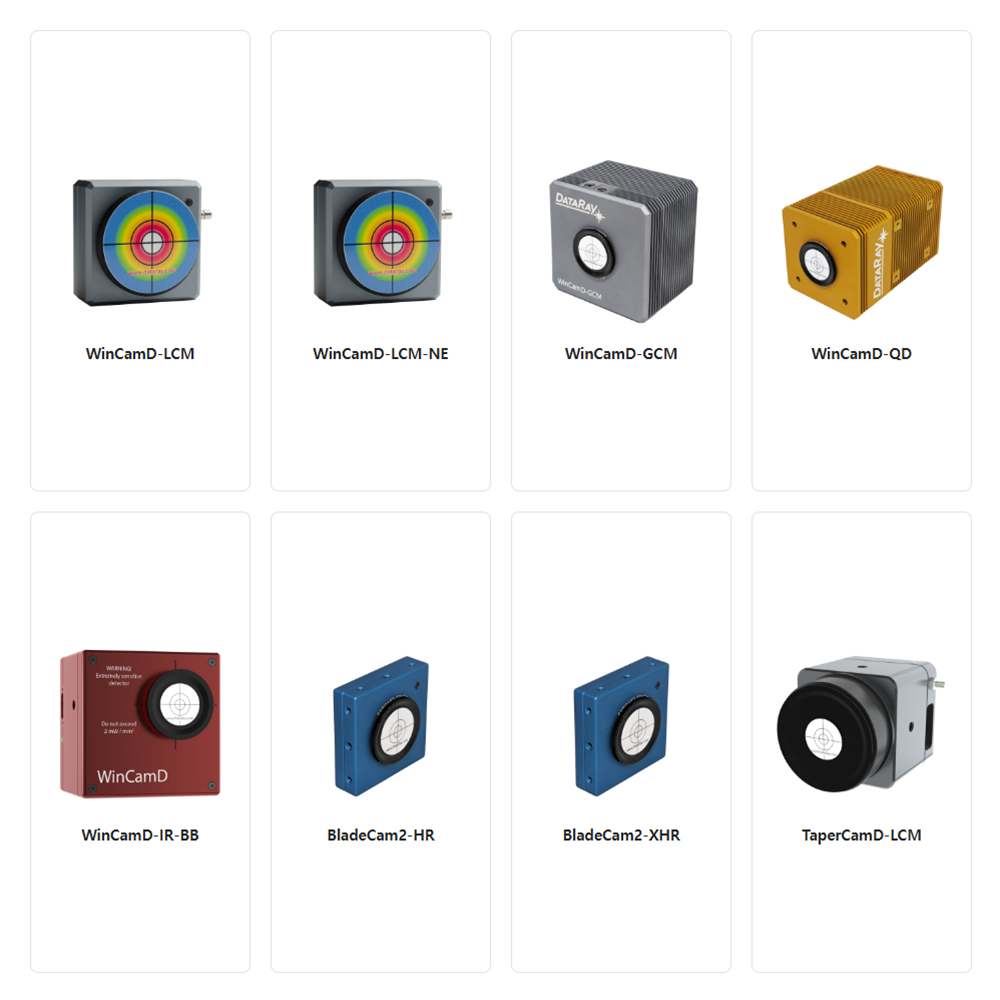

DataRay - Beam Profiling Cameras, WinCamD Series 이미지 확대 보기
  • DataRay - Beam Profiling Cameras, WinCamD Series

DataRay - Beam Profiling Cameras, WinCamD Series

Many industries rely on lasers to provide high-quality, repeatable results at scale. From designing a new process, to validating designs and troubleshooting existing optical trains, beam profilers help you understand more about your lasers and develo
판매가
0원
브랜드
DataRay
구매혜택
-
할인 :
M
적립 마일리지 :
WinCamD-LCM : 355 to 1150 nm / 355 to 1350 nm (includes long pass filter) / 1480 to 1610 nm / 190 to 1150 nm
WinCamD-LCM-NE : 355 to 1150 nm / 355 to 1350 nm (includes long pass filter)
WinCamD-GCM : 355 to 1150 nm / 355 to 1350 nm (includes long pass filter) / 1480 to 1610 nm / 190 to 1150 nm
WinCamD-QD : VIS-SWIR 400-1700 nm / VIS-eSWIR 350-2000 nm
WinCamD-IR-BB : 2 to 16 µm
BladeCam2-HR : 355 to 1150 nm / 355 to 1350 nm (includes long pass filter) / 1480 to 1610 nm / 190 to 1150 nm
BladeCam2-XHR : 355 to 1150 nm / 355 to 1350 nm (includes long pass filter) / 190 to 1150 nm
TaperCamD-LCM : 355 to 1150 nm / 4.2Mpixel, 2048 x 2048 pixels, 25 x 25 mm active area
DataRay - Beam Profiling Cameras, WinCamD Series
0원
총 상품금액
총 할인금액
Total
5,000원 더 구매하면 무료 배송!
무료 배송!(2,500원을 절약했어요.)
delivery_icon
  • 0원
  • 50,000원
    • 배송비 계산 기준
    ×
    배송비 계산 기준
    ※ 판매가 + 옵션가 + 추가상품가 + 텍스트옵션가 - 상품할인가 - 상품쿠폰할인가
    ※ 상품에 적용된 배송비 기준입니다. 여러상품 주문시 또는 주문서 작성시 적용(설정)에 따라 달라질 수 있습니다.
    바로구매

    WinCamD-LCM

    • Versatile global shutter supports CW & pulsed beams
    • 355 to 1150 nm standard with UV, 1310 nm, and 1550 nm options
    Product Details

    WinCamD-LCM-NE

    • Versatile global shutter supports CW & pulsed beams
    • NIR-enhanced sensor
    Product Details

    WinCamD-GCM

    • GigE Vision supports long cable runs (to 100 m)
    • Access your profiler via ethernet network
    Product Details

    WinCamD-QD

    • Options for 1550 and 2000 nm
    • Large sensor formats available
    Product Details

    WinCamD-IR-BB

    • Broadband coverage, 2 to 16 µm
    • High sensitivity for low power applications
    Product Details

    BladeCam2-HR

    • Compact, affordable beam profiling
    • 5.2 µm pixels
    Product Details

    BladeCam2-XHR

    • Compact, affordable beam profiling
    • Ultra-small 3.2 µm pixels
    Product Details

    TaperCamD-LCM

    • Large 25 x 25 mm active area
    • Suitable for large beam profiling
    Product Details
    Laser Beam Profiler Selection Guide 바로가기
    Detailed Product Information & SKUs
    Part Number Description
    S-TCD-LCMTaperCamD-LCM beam profiling camera (355 to 1150 nm). 12.5 µm (effective) pixels, 2048 x 2048, 25 x 25 mm active area. Includes 2" filters (NDXL-1, NDXL-2, NDXL-4).
    S-WCD-LCM-1310-S1.5WinCamD-LCM-1310-S1.5 beam profiling camera (355 to 1350 nm, sensor ~2.5mm below case). 5.5 µm pixels, 2048 x 2048, 11.3 x 11.3 mm active area. Includes magnetic 1" filters (MagND-1, MagND-2, MagND-4, MagWCD-LPF1290 long pass filter).
    S-WCD-LCM-C-MLWinCamD-LCM-C-ML beam profiling camera system (355 to 1350 nm & 1550 nm). 5.5 µm pixels with microlenses, 2048 x 2048, 11.3 x 11.3 mm active area. Includes C-mount filters (ND-1, ND-2, ND-4, WCD-LPF1290 long pass filter).
    S-WCD-LCM-C-ND4WinCamD-LCM-C beam profiling camera (355 to 1150 nm). 5.5 µm pixels, 2048 x 2048, 11.3 x 11.3 mm active area. Includes C-mount filter (ND-4).
    S-WCD-LCM-ND4WinCamD-LCM beam profiling camera (355 to 1150 nm). 5.5 µm pixels, 2048 x 2048, 11.3 x 11.3 mm active area. Includes magnetic 1" filter (MagND-4).
    S-WCD-LCM-NDXWinCamD-LCM beam profiling camera (355 to 1150 nm). 5.5 µm pixels, 2048 x 2048, 11.3 x 11.3 mm active area. Does not include filters.
    S-WCD-LCM-NE-1310-S1.5WinCamD-LCM-NE-1310-S1.5 beam profiling camera (355 to 1350 nm, sensor ~2.5mm below case). 5.5µm pixels, 2048x2048, 11.3x11.3mm active area. Improved response above ~600 nm. Includes 1" filters (MagND-1, MagND-2, MagND-4, MagWCD-LPF1290 long pass filter).
    S-WCD-LCM-NE-S1.5WinCamD-LCM-NE-S1.5 beam profiling camera (355 to 1150 nm, sensor ~2.5mm below case). 5.5 µm pixels, 2048 x 2048, 11.3 x 11.3 mm active area. Enhanced spectral response above ~600 nm. Includes magnetic 1" filters (MagND-1, MagND-2, MagND-4).
    S-WCD-LCM-S1.5WinCamD-LCM-S1.5 beam profiling camera (355 to 1150 nm, sensor ~2.5mm below case). 5.5 µm pixels, 2048 x 2048, 11.3 x 11.3 mm active area. Includes magnetic 1" filters (MagND-1, MagND-2, MagND-4).
    S-WCD-LCM-TEL-S1.5WinCamD-LCM-TEL-S1.5 beam profiling camera (1480 to 1610 nm, sensor ~2.5mm below case). 5.5 µm pixels (25 µm effective), 2048 x 2048, 11.3 x 11.3 mm active area. Includes magnetic 1" filters (MagND-1, MagND-2, MagND-4, MagWCD-LPF1290 long pass filter).
    S-WCD-LCM-UV-S1.5WinCamD-LCM-UV-S1.5 beam profiling camera (190 to 1150 nm, sensor ~2.5mm below case). 5.5 µm pixels, 2048 x 2048, 11.3 x 11.3 mm active area. Includes magnetic 1" ND and ND-UV filters (MagND-1, MagND-2, MagND-4, MagND-1-UV, MagND-2-UV, MagND-4-UV).
    S-WCD-THZWinCamD-THz beam profiling camera (multi-spectral THz operation). 5.5 µm pixels, 2048 x 2048, 11.3 x 11.3 mm active area. Includes C-mount filters (ND-1, ND-2, ND-4), 50 mm tube.
    S-BC2-HRBladeCam2-HR beam profiling camera (355 to 1150 nm). 5.2 µm pixels, 1280 x 1024, 6.6 x 5.3 mm active area. Includes C-mount filters (ND-1, ND-2, ND-4).
    S-BC2-HR-1310BladeCam2-HR-1310 beam profiling camera (355 to 1350 nm). 5.2 µm pixels, 1280 x 1024, 6.6 x 5.3 mm active area. Includes C-mount filters (ND-1, ND-2, ND-4), WCD-LPF1290 long pass filter, and c-mount adapter.
    S-BC2-HR-ND4BladeCam2-HR-ND4 beam profiling camera (355 to 1150 nm). 5.2 µm pixels, 1280 x 1024, 6.6 x 5.3 mm active area. Includes C-mount ND-4 filter.
    S-BC2-HR-TELBladeCam2-HR-TEL beam profiling camera (1480 to 1610 nm). 5.2 µm pixels, 1280 x 1024, 6.6 x 5.3 mm active area. Includes C-mount filters (ND-1, ND-2, ND-4, WCD-LPF1290 long pass filter).
    S-BC2-HR-UVBladeCam2-HR-UV beam profiling camera (190 to 1150 nm). 5.2 µm pixels, 1280 x 1024, 6.6 x 5.3 mm active area. Includes C-mount filters (ND-1, ND-2, ND-4) and 1" filters with C-mount adapter (NDL-1-UV, NDL-2-UV, NDL-4-UV).
    S-BC2-XHRBladeCam2-XHR beam profiling camera (355 to 1150 nm). 3.2 µm pixels, 2048 x 1536, 6.5 x 4.9 mm active area. Includes C-mount filters (ND-1, ND-2, ND-4).
    S-BC2-XHR-1310BladeCam2-XHR-1310 beam profiling camera (355 to 1350 nm). 3.2 µm pixels, 2048 x 1536, 6.5 x 4.9 mm active area. Includes C-mount filters (ND-1, ND-2, ND-4), WCDL-LPF1290 long pass filter, and c-mount adapter.
    S-BC2-XHR-ND4BladeCam2-XHR-ND4 beam profiling camera (355 to 1150 nm). 3.2 µm pixels, 2048 x 1536, 6.5 x 4.9 mm active area. Includes C-mount ND-4 filter.
    S-BC2-XHR-UVBladeCam2-XHR-UV beam profiling camera (190 to 1150 nm). 3.2 µm pixels, 2048 x 1536, 6.5 x 4.9 mm active area. Includes C-mount filters (ND-1, ND-2, ND-4) and 1" filters with C-mount adapter (NDL-1-UV, NDL-2-UV, NDL-4-UV).
    S-WCD-GCMWinCamD-GCM beam profiling camera (355 to 1150 nm), GigE Vision. 5.5 µm pixels, 2048 x 2048, 11.3 x 11.3 mm active area. Includes magnetic 1" filters (MagND-1, MagND-2, MagND-4).
    S-WCD-IR-BB-7.5WinCamD-IR-BB-7.5 broadband MWIR beam profiling camera (2 to 16 µm, update rate 7.5 Hz). 17 µm pixels, 640 x 480, 10.88 x 8.16 mm active area. Includes 1" filters (NDL-1-Ge, NDL-2-Ge).
    S-WCD-LCMWinCamD-LCM beam profiling camera (355 to 1150 nm). 5.5 µm pixels, 2048 x 2048, 11.3 x 11.3 mm active area. Includes magnetic 1" filters (MagND-1, MagND-2, MagND-4).
    S-WCD-LCM-1310WinCamD-LCM-1310 beam profiling camera (355 to 1350 nm). 5.5 µm pixels, 2048 x 2048, 11.3 x 11.3 mm active area. Includes magnetic 1" filters (MagND-1, MagND-2, MagND-4, MagWCD-LPF1290 long pass filter).
    S-WCD-LCM-CWinCamD-LCM-C beam profiling camera (355 to 1150 nm). 5.5 µm pixels, 2048 x 2048, 11.3 x 11.3 mm active area. Includes C-mount filters (ND-1, ND-2, ND-4).
    S-WCD-LCM-C-1310WinCamD-LCM-C-1310 beam profiling camera (355 to 1350 nm). 5.5 µm pixels, 2048 x 2048, 11.3 x 11.3 mm active area. Includes C-mount filters (ND-1, ND-2, ND-4) and 1" WCDL-LPF1290 long pass filter with c-mount adapter.
    S-WCD-LCM-C-CXWinCamD-LCM-C-CX beam profiling camera (355 to 1150 nm). 5.5 µm pixels, 2048 x 2048, 11.3 x 11.3 mm active area. Includes C-mount filters (ND-1, ND-2, ND-4). Includes calibration certificate; sensor plane position tolerance ± 0.2 mm.
    S-WCD-LCM-C-S1WinCamD-LCM-C-S1 beam profiling camera (355 to 1150 nm, sensor ~5 mm below case). 5.5 µm pixels, 2048 x 2048, 11.3 x 11.3 mm active area. Includes C-mount filters (ND-1, ND-2, ND-4).
    S-WCD-LCM-C-TELWinCamD-LCM-C-TEL beam profiling camera (1480 to 1610 nm). 5.5 µm pixels (25 µm effective), 2048 x 2048, 11.3 x 11.3 mm active area. Includes C-mount filters (ND-1, ND-2, ND-4, WCD-LPF1290 long pass filter).
    S-WCD-LCM-C-UVWinCamD-LCM-C-UV beam profiling camera (190 to 1150 nm). 5.5 µm pixels, 2048 x 2048, 11.3 x 11.3 mm active area. Includes C-mount filters (ND-1, ND-2, ND-4) and 1" filters with C-mount adapter (NDL-1-UV, NDL-2-UV, NDL-4-UV).
    S-WCD-LCM-C-UV-S1WinCamD-LCM-C-UV-S1 beam profiling camera (190 to 1150 nm, sensor ~5 mm below case). 5.5 µm pixels, 2048 x 2048, 11.3 x 11.3 mm active area. Includes C-mount filters (ND-1, ND-2, ND-4) and 1" filters with C-mount adapter (NDL-1-UV, NDL-2-UV, NDL-4-UV).
    S-WCD-LCM-CXWinCamD-LCM-CX beam profiling camera (355 to 1150 nm). 5.5 µm pixels, 2048 x 2048, 11.3 x 11.3 mm active area. Includes magnetic 1" filters (MagND-1, MagND-2, MagND-4). Includes calibration certificate and sensor plane position tolerance ± 0.2 mm.
    S-WCD-LCM-S1WinCamD-LCM-S1 beam profiling camera (355 to 1150 nm, sensor ~5 mm below case). 5.5 µm pixels, 2048 x 2048, 11.3 x 11.3 mm active area. Includes magnetic 1" filters (MagND-1, MagND-2, MagND-4).
    S-WCD-LCM-TELWinCamD-LCM-TEL beam profiling camera (1480 to 1610 nm). 5.5 µm pixels (25 µm effective), 2048 x 2048, 11.3 x 11.3 mm active area. Includes magnetic 1" filters (MagND-1, MagND-2, MagND-4, MagWCD-LPF1290 long pass filter).
    S-WCD-LCM-UVWinCamD-LCM-UV beam profiling camera (190 to 1150 nm). 5.5 µm pixels, 2048 x 2048, 11.3 x 11.3 mm active area. Includes magnetic 1" ND and ND-UV filters (MagND-1, MagND-2, MagND-4, MagND-1-UV, MagND-2-UV, MagND-4-UV).
    S-WCD-LCM-UV-S1WinCamD-LCM-UV-S1 beam profiling camera (190 to 1150 nm, sensor ~5 mm below case). 5.5 µm pixels, 2048 x 2048, 11.3 x 11.3 mm active area. Includes magnetic 1" filters (MagND-1, MagND-2, MagND-4, MagND-1-UV, MagND-2-UV, MagND-4-UV).
    S-WCD-LCM-NEWinCamD-LCM-NE beam profiling camera (355 to 1150 nm). 5.5 µm pixels, 2048 x 2048, 11.3 x 11.3 mm active area. Enhanced spectral response above ~600 nm. Includes magnetic 1" filters (MagND-1, MagND-2, MagND-4).
    S-WCD-LCM-NE-1310WinCamD-LCM-NE-1310 beam profiling camera (355 to 1350 nm). 5.5 µm pixels, 2048 x 2048, 11.3 x 11.3 mm active area. Improved spectral response above ~600 nm. Includes magnetic 1" filters (MagND-1, MagND-2, MagND-4, MagWCD-LPF1290 long pass filter).
    S-WCD-LCM-NE-1310-S1WinCamD-LCM-NE-1310-S1 beam profiling camera (355 to 1350 nm, sensor ~5 mm below case). 5.5 µm pixels, 2048x2048, 11.3x11.3 mm active area. Improved spectral response above ~600 nm. Includes magnetic 1" filters.
    S-WCD-LCM-NE-CWinCamD-LCM-NE-C beam profiling camera (355 to 1150 nm). 5.5 µm pixels, 2048 x 2048, 11.3 x 11.3 mm active area. Improved spectral response above ~600 nm. Includes C-mount filters (ND-1, ND-2, ND-4).
    S-WCD-LCM-NE-C-1310WinCamD-LCM-NE-C-1310 beam profiling camera (355 to 1350 nm). 5.5 µm pixels, 2048 x 2048, 11.3 x 11.3 mm active area. Improved spectral response above ~600 nm. Includes C-mount filters (ND-1, ND-2, ND-4) and 1" WCD-LPF1290 long pass filter.
    S-WCD-LCM-NE-C-1310-S1WinCamD-LCM-NE-C-1310-S1 beam profiling camera (355 to 1350 nm, sensor ~5 mm below case). 5.5 µm pixels, 2048x2048, 11.3x11.3 mm active area. Improved response above ~600 nm. Includes C-mount filters (ND-1, ND-2, ND-4) and 1" WCD-LPF1290 long pass filter.
    S-WCD-LCM-NE-C-S1WinCamD-LCM-NE-C-S1 beam profiling camera (355 to 1150 nm, sensor ~5 mm below case). 5.5 µm pixels, 2048 x 2048, 11.3 x 11.3 mm active area. Improved spectral response above ~600 nm. Includes C-mount filters (ND-1, ND-2, ND-4).
    S-WCD-LCM-NE-S1WinCamD-LCM-NE-S1 beam profiling camera (355 to 1150 nm, sensor ~5 mm below case). 5.5 µm pixels, 2048 x 2048, 11.3 x 11.3 mm active area. Enhanced spectral response above ~600 nm. Includes magnetic 1" filters (MagND-1, MagND-2, MagND-4).
    S-WCD-QD-1550WinCamD-QD-1550 visible & SWIR beam profiling camera (400 to 1700 nm) with colloidal quantum dot sensor. 15 µm pixels, 640 x 512, 9.5 x 7.68 mm active area.
    S-WCD-QD-1550-LWinCamD-QD-1550-L visible & SWIR beam profiling camera (400 to 1700 nm) with colloidal quantum dot sensor. 15 µm pixels, 1280 x 1024, 19.2 x 15.36 mm active area.
    S-WCD-QD-1550-XLWinCamD-QD-1550-XL visible & SWIR beam profiling camera (400 to 1700 nm) with colloidal quantum dot sensor. 15 µm pixels, 1920 x 1080, 28.8 x 16.2 mm active area.
    S-WCD-QD-2000WinCamD-QD-2000 visible & eSWIR beam profiling camera (350 to 2000 nm) with colloidal quantum dot sensor. 15 µm pixels, 640 x 512, 9.5 x 7.68 mm active area. Includes C-mount filters (ND-1, ND-2, ND-4). USB3 compatible version.
    S-WCD-QD-2000-LWinCamD-QD-2000-L visible & eSWIR beam profiling camera (350 to 2000 nm) with colloidal quantum dot sensor. 15 µm pixels, 1280 x 1024, 19.2 x 15.4 mm active area. Includes NDL filters (NDL-1, NDL-2, NDL-4). USB3 compatible version.
    S-WCD-QD-2000-XLWinCamD-QD-2000-XL visible & eSWIR beam profiling camera (350 to 2000 nm) with colloidal quantum dot sensor. 15 µm pixels, 1920 x 1080, 28.8 x 16.2 mm active area. Includes NDL filters (NDL-1, NDL-2, NDL-4). USB3 compatible version.
