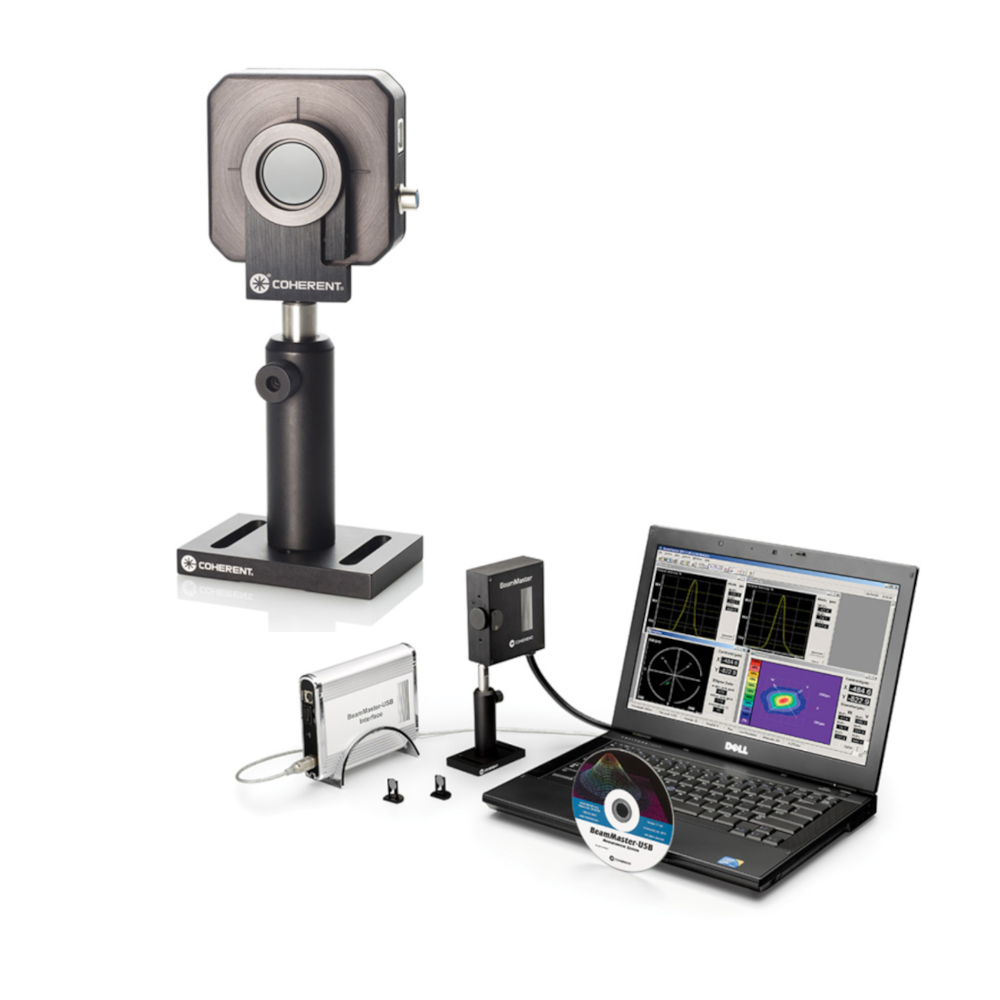

Coherent - Beam Profilers

Beam Diagnostics Systems : Characterize the spatial intensity distribution and size of laser beams, and visualize beam shape, with speed and accuracy.

판매가: 0원

브랜드: Coherent

구매혜택: -
할인 :
M
적립 마일리지 :

Improve Your Process: Optimize your process outcomes by accurately characterizing laser parameters.

Measure Any Beam: Measure CW and pulsed beams over a wide range of diameters and wavelengths.

Easy to Use: Utilize powerful instrument control and data analysis software.

: LaserCam HR II - 1/2" USB Camera System

: LaserCam HR II - 2/3" USB Camera System

: LaserCam-HR II UV 2/3" USB Camera System

Coherent - Beam Profilers

0원

총 상품금액

총 할인금액

Total

5,000원 더 구매하면 무료 배송!

무료 배송!(2,500원을 절약했어요.)

0원

50,000원

배송비 계산 기준

바로구매

상세정보
교환및반품
상품후기 (0)
상품문의 (0)

Beam Diagnostics Systems Product Family

Search and find the right laser measurement sensor for your application. View a wide selection of accurate and calibrated beam diagnostics systems.

Model	Description	Type	Laser Compatibility	Beam Size Range	Wavelength Range (nm)	Buy Now
LaserCam HR II	LaserCam HR II systems deliver fast and detailed beam intensity profile analysis.	Camera	Pulsed & CW	0.5 mm to 6 mm	190 to 355 400 to 1100	View
BeamMaster-USB System	These offer a large dynamic operating range and can accurately measure small diameter and even focused laser beams.	Scanning multiple knife-edge	CW	3 µm to 8 mm 3 µm to 2 mm	190 to 1100 800 to 1800	View

Beam Diagnostics Cameras & Accessories

Search and find the right laser measurement sensor for your application. View our high-resolution camera systems and accessories.

SKU	Product Name	Description	Link
1282868	LaserCam HR II - 1/2" USB Camera System	Beam diagnostics camera system, USB 2.0 bus-powered, high-resolution, 1/2" large-area CCD camera with LDFP (low-distortion front plate) filter. Includes BeamView software.	View
1282870	LaserCam HR II - 2/3" USB Camera System	Beam diagnostics camera system, USB 2.0 bus-powered, high-resolution, 2/3" large-area CCD camera with LDFP (low-distortion front plate) filter. Includes BeamView software.	View
1360550	LaserCam-HR II UV 2/3" USB Camera System	Beam diagnostics camera system, USB 2.0 bus-powered, high-resolution, 2/3" large-area UV-phosphor coated CCD camera with LDFP (low-distortion front plate) filter. Includes BeamView software.	View
1098426	Barrel Set	Barrel Set includes 2 Barrels and 3 Mount Rings for use with LaserCam-HR II Camera Profilers	View
1098403	BCUBE	Beam Cube Fixed-Attenuator Module (beamsplitter) for use with LaserCam-HR II Camera Profilers	View
33-3336-000	C-VARM	Continously Variable Attenator Module for use with LaserCam-HR II Camera Profilers	View
33-6859-000	UV C-VARM	UV-enhanced Continously Variable Attenator Module for use with LaserCam-HR II Camera Profilers	View
1098466	UV-BCUBE	UV-enhanced Beam Cube Fixed-Attenuator Module (beamsplitter) for use with LaserCam-HR II Camera Profilers	View
33-3328-000	VARM	Variable Attenuator Ring Module for use with LaserCam-HR II Camera Profilers	View

Beam Diagnostics Cameras & Accessories

Search and find the right laser measurement sensor for your application. View our high-resolution camera systems and accessories.

SKU	Product Name	Description	Link
1224016	BeamMaster-USB System BM-3 (InGaAs)	Knife-edge beam profiler; 3 mm circular with 3 knife edges; profiles beams down to 3 µm, InGaAs detector with 800 to 1800 nm spectral range.	View
1224012	BeamMaster-USB System BM-3 (UV)	Knife-edge beam profiler; 5 mm circular with 3 knife edges; profiles beams down to 3 µm, Enhanced Silicon detector with 190 to 1100 nm spectral range.	View
1224018	BeamMaster-USB System BM-7 (InGaAs 3mm)	Knife-edge beam profiler; 3 mm circular aperture with 7 knife edges; profiles beams down to 15 µm, InGaAs detector with 800 to 1800 nm spectral range.	View
1224020	BeamMaster-USB System BM-7 (InGaAs 5mm)	Knife-edge beam profiler; 5 mm circular aperture with 3 knife edges; profiles beams down to 15 µm, InGaAs detector with 800 to 1800 nm spectral range.	View
1224014	BeamMaster-USB System BM-7 (UV)	Knife-edge beam profiler; 9 mm square aperture with 7 knife edges; profiles beams down to 15 µm, Enhanced Silicon detector with 190 to 1100 nm spectral range.	View
33-7147-000	BM C-Mount	BeamMaster C-Mount Adapter Plate Accessory	View
