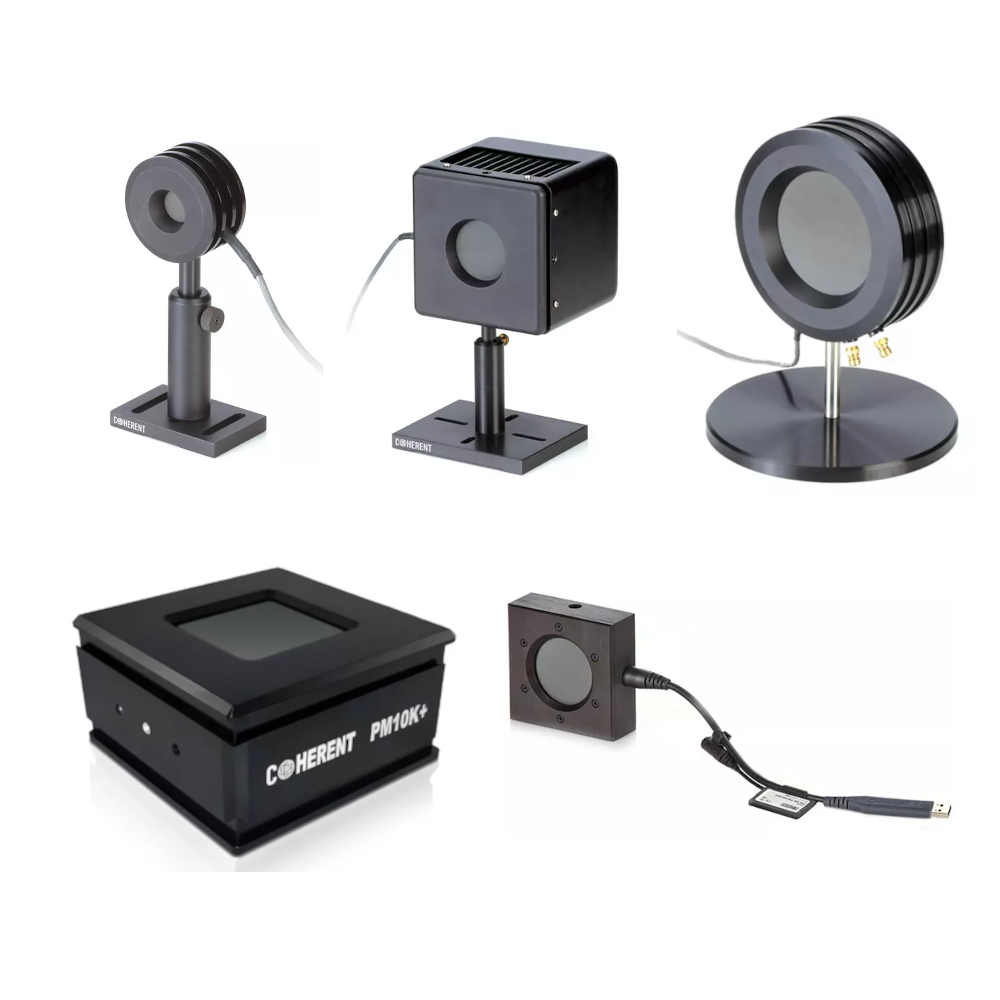

Coherent - Thermopile and Calorimeter Power Sensors

Coherent thermopile and calorimeter sensors offer an unmatched combination of precision, reliability, and versatility. Coherent PowerMax Thermopile and Calorimeter Sensors offer an unmatched combination of precision, reliability, and versatility, mea

판매가: 0원

브랜드: Coherent

구매혜택: -
할인 :
M
적립 마일리지 :

Interface Type: DB25 / DB25+USB / RS-232 / USB

Cooling Type: Air / Conductive / Fan / Water / Warter, Air(intermittent)

Coherent - Thermopile and Calorimeter Power Sensors

0원

총 상품금액

총 할인금액

Total

5,000원 더 구매하면 무료 배송!

무료 배송!(2,500원을 절약했어요.)

0원

50,000원

배송비 계산 기준

바로구매

상세정보
교환및반품
상품후기 (0)
상품문의 (0)

Thermopile Power Sensors

Search and find the right laser measurement sensor for your application. View a wide selection of accurate and calibrated laser power sensors.

SKU	Product	Interface Type	Active Area Diameter	Cooling Type	Wavelength Range	Power Range	Details
2293938	PM10K+ Laser Power Sensor (RS232)	RS-232	65 x 65	Water	0.19 to 11 µm	100 to 12,000W	-
2293937	PM10K+ Laser Power Sensor (DB25 + USB)	DB25 + USB	65 x 65	Water	0.19 to 11 µm	100 to 12,000W	-
1409629	PowerMax-RS PM3K+ Power Sensor	RS-232	50 mm	Water	0.19 to 11	5W to 3000W	View
1409628	PowerMax-USB PM3K+ Power Sensor	USB	50 mm	Water	0.19 to 11	5W to 3000W	View
1409627	PM3K+ Laser Power Sensor	DB25	50 mm	Water	0.19 to 11	5W to 3000W	View
1409623	PowerMax-RS PM1K+ Power Sensor	RS-232	50 mm	Water	0.19 to 11	5W to 1000W	View
1409622	PowerMax-USB PM1K+ Power Sensor	USB	50 mm	Water	0.19 to 11	5W to 1000W	View
1409621	PM1K+ Laser Power Sensor	DB25	50 mm	Water	0.19 to 11	5W to 1000W	View
1402730	PowerMax-RS PM6K+ Power Sensor	RS-232	50 mm	Water	0.19 to 11	10W to 6000W	View
1402729	PowerMax-USB PM6K+ Power Sensor	USB	50 mm	Water	0.19 to 11	10W to 6000W	View
1402728	PM6K+ Laser Power Sensor	DB25	50 mm	Water	0.19 to 11	10W to 6000W	View
1363752	PowerMax-RS LM-3	RS-232	19 mm	Air	0.25 to 10.6 µm	10 mW to 3W	View
1320565	PowerMax-RS LM-200 (220V)	RS-232	19 mm	Fan	0.25 to 10.6 µm	100 mW to 50W (w/o fan), 1-200W (with fan)	-
1317151	PowerMax-RS PM150-50	RS-232	50 mm	Air	0.19 to 11 µm	300 mW to 150W	View
1305568	PowerMax-RS PM150-50XC	RS-232	50 mm	Water, Air (intermittent)	0.15 to 1 µm	300 mW to 150W	View
1288992	PowerMax-RS PS10Q	RS-232	10 mm	Air	0.3 to 2.1 µm	100 µW to 1W	View
1288940	PowerMax-USB PM100-19C	USB	19 mm	Water, Air (intermittent)	0.19 to 11 µm	300 mW to 100W (water-cooled)	View
1287077	PowerMax-USB PS10Q	USB	10 mm	Air	0.3 to 2.1 µm	100 µW to 1W	View
1275678	PowerMax-USB LM-150 LS	USB	19 mm	Air	0.25 to 10.6 µm	100mW to 150W	View
1263294	PowerMax-USB PM30X	USB	19 mm	Air	0.15 to 1 µm	10 mW to 30W	View
1258401	PowerMax-RS LM-200 (110V)	RS-232	19 mm	Fan	0.25 to 10.6 µm	100 mW to 50W (w/o fan), 1-200W (with fan)	-
1257617	PowerMax-USB PM2X	USB	19 mm	Air	0.15 to 1 µm	5 mW to 2W	View
1236447	PowerMax-RS PM10X	RS-232	19 mm	Air	0.15 to 1 µm	5 mW to 10W	View
1235755	PowerMax-USB PM5K-100	USB	100 mm	Water	0.25 to 10.6 µm	100 to 5000W	View
1233118	PowerMax-USB BeamFinder	USB	35 mm	Water	0.25 to 10.6 µm	1 to 1000W	View
1230323	PowerMax-RS PM2X	RS-232	19 mm	Air	0.15 to 1 µm	5 mW to 2W	View
1223336	PowerMax-USB PM150-50	USB	50 mm	Air	0.19 to 11 µm	300 mW to 150W	View
1214871	PowerMax-RS PM1KX-100	RS-232	100 mm	Water	0.15 to 1 µm	50 to 1000W	View
1211474	PowerMax-RS LM-45	RS-232	19 mm	Air	0.25 to 10.6 µm	100 mW to 25W	View
1195840	PowerMax-USB LM-200 (220V)	USB	19 mm	Fan	0.25 to 10.6 µm	100 mW to 50W (w/o fan), 1-200W (with fan)	-
1194641	PowerMax-USB LM-200B	USB	19 mm	Water	0.25 to 10.6 µm	100 mW to 200W	-
1193407	PowerMax-USB LM-200 (110V)	USB	19 mm	Fan	0.25 to 10.6 µm	100 mW to 50W (w/o fan), 1-200W (with fan)	-
1193300	PowerMax-USB LM-100	USB	19 mm	Air	0.25 to 10.6 µm	100 mW to 100W	View
1191133	PowerMax-USB PM3Q	USB	10 mm	Air	0.3 to 2 µm	500 uW to 2W	View
1184874	PowerMax-USB PM10X	USB	19 mm	Air	0.15 to 1 µm	5 mW to 10W	View
1181653	PowerMax-RS LM-5000	RS-232	56 mm	Water	0.25 to 10.6 µm	50 to 5000W	View
1180872	PowerMax-RS LM-1000	RS-232	38 mm	Water	0.25 to 10.6 µm	50 to 1000W	View
1179504	PowerMax-RS PS19Q	RS-232	19 mm	Air	0.3 to 2.1 µm	100 uW to 1W	View
1174270	PowerMax-USB LM-20	USB	19 mm	Air	0.25 to 10.6 µm	100 mW to 20W	View
1174269	PowerMax-USB LM-5000	USB	56 mm	Water	0.25 to 10.6 µm	50 to 5000W	View
1174268	PowerMax-USB LM-1000	USB	38 mm	Water	0.25 to 10.6 µm	50 to 1000W	View
1174267	PowerMax-RS PM1K-36C Power Sensor	RS-232	36 mm	Water	0.25 to 10.6 µm	50 to 1000W	View
1174266	PowerMax-USB PM1K-36C Power Sensor	USB	36 mm	Water	0.25 to 10.6 µm	50 to 1000W	View
1174264	PowerMax-USB PM2	USB	19 mm	Air	0.19 to 11 µm	5 mW to 2W	View
1174263	PowerMax-USB PM3	USB	19 mm	Air	0.3 to 11 µm	500 uW to 2W	View
1174262	PowerMax-USB PM10	USB	19 mm	Air	0.19 to 11 µm	5 mW to 10W	View
1174261	PowerMax-USB PS19	USB	19 mm	Air	0.19 to 11 µm	100 uW to 1W	View
1174260	PowerMax-USB PS10	USB	10 mm	Air	0.19 to 11 µm	100 uW to 1W	View
1174259	PowerMax-RS PM30X	RS-232	19 mm	Air	0.15 to 1 µm	10 mW to 30W	View
1174258	PowerMax-RS PM30	RS-232	19 mm	Air	0.19 to 11 µm	10 mW to 30W	View
1174257	PowerMax-USB PM30	USB	19 mm	Air	0.19 to 11 µm	10 mW to 30W	View
1168349	PowerMax-RS PM150-50C Power Sensor	RS-232	50 mm	Water, Air (intermittent)	0.19 to 11 µm	300 mW to 150W (water-cooled	View
1168348	PowerMax-USB PM150-50C	USB	50 mm	Water, Air (intermittent)	0.19 to 11 µm	300 mW to 150W (water-cooled)	View
1168347	PowerMax-RS PM150-19C	RS-232	19 mm	Water, Air (intermittent)	0.19 to 11 µm	300 mW to 150W (water-cooled)	View
1168346	PowerMax-USB PM150-19C	USB	19 mm	Water, Air (intermittent)	0.19 to 11 µm	300 mW to 150W (water-cooled)	View
1168345	PowerMax-RS PM10-19C	RS-232	19 mm	Water, Air (intermittent)	0.19 to 11 µm	10 mW to 10W (water-cooled)	View
1168344	PowerMax-USB PM10-19C	USB	19 mm	Water, Air (intermittent)	0.19 to 11 µm	10mW to 10W	View
1168343	PowerMax-USB PS19Q	USB	19 mm	Air	0.3 to 2.1 µm	100 µW to 1W	View
1168342	PowerMax-USB LM-45	USB	19 mm	Air	0.25 to 10.6 µm	100 mW to 25W	View
1168341	PowerMax-RS LM-10	RS-232	16 mm	Air	0.25 to 10.6 µm	10 mW to 10W	View
1168340	PowerMax-USB LM-10	USB	16 mm	Air	0.25 to 10.6 µm	10 mW to 10W	View
1168339	PowerMax-USB LM-3	USB	19 mm	Air	0.25 to 10.6 µm	10 mW to 3W	View
1152086	PM1KX-100	DB25	100 mm	Water	0.15 to 1	1W to 1000W	View
1141474	PM300	DB25	19 mm	Water	0.25 - 11	1 W to 300W	View
1115484	PM1KX	DB25	50 mm	Water	0.15 to 1	1W to 1000W	View
1113493	PM200F-50X	DB25	50 mm	Fan	0.15 to 1	1 W to 200W	View
1098509	PM300F-19	DB25	19 mm	Fan	0.25 to 11	1W to 300W	View
1098506	PM3K-100	DB25	100 mm	Water	0.25 to 11	100W to 3000W	View
1098505	PM5K-200	DB25	200 mm	Water	0.25 to 11	100W to 5000W	View
1098498	PM30X	DB25	19 mm	Air	0.15 - 1	100 mW to 30W	View
1098490	PM1K-100	DB25	100 mm	Water	0.25 to 11	100W to 1000W	View
1098483	PM100-19C	DB25	19 mm	Air	0.25 - 11	300 mW to 100W	View
1098481	PM300F-50X	DB25	50 mm	Fan	0.15 to 1	1W to 300W	View
1098480	PM200F-19	DB25	19 mm	Fan	0.25 to 11	1 W to 200W	View
1098472	PM200F-50	DB25	50 mm	Fan	0.25 to 11	1 W to 200W	View
1098461	PM5K-100	DB25	100 mm	Water	0.25 to 11	100W to 5000W	View
1098457	PM2X	DB25	19 mm	Air	0.15 - 1	10 mW to 2W	View
1098456	LM-20	DB25	19 mm	Conductive	0.25 to 10.6	100 mW to 20W	View
1098455	PM150X	DB25	50 mm	Air	0.15 - 1	300 mW to 150W	View
1098452	LM-150 LS	DB25	19 mm	Air	0.25 to 10.6	100 mW to 150W	View
1098450	LM-200 (220V)	DB25	19 mm	Fan	0.25 to 10.6	100 mW to 200W	-
1098444	PM150-19C	DB25	19 mm	Water, Air (intermittent)	0.25 - 11	300 mW to 150W	View
1098443	PM150-50XC	DB25	50 mm	Water, Air (intermittent)	0.15 - 1	300 mW to 150W	View
1098440	LM-200 (110V)	DB25	19 mm	Fan	0.25 to 10.6	100 mW to 200W	-
1098437	LM-2500	DB25	56 mm	Water	0.25 to 10.6	100W to 2500W	View
1098429	PM30V1	DB25	19 mm	Air	0.25 to 3	100 mW to 30W	View
1098427	BeamFinder	DB25	35 mm	Water	0.3 to 10.6	100W to 1000W	View
1098423	PM10X	DB25	19 mm	Air	0.15 - 1	10 mW to 10W	View
1098421	LM-5000	DB25	56 mm	Water	0.25 to 10.6	100W to 5000W	View
1098419	PM3Q	DB25	10 mm	Air	0.3 - 2	500 µW to 2W	View
1098417	PM300F-50	DB25	50 mm	Fan	0.25 to 11	1W to 300W	View
1098413	PS19	DB25	19 mm	Air	0.3 - 11	100 µW to 1W	View
1098412	PM150-50C	DB25	50 mm	Water, Air (intermittent)	0.25 - 11	300 mW to 150W	View
1098409	LM-1000	DB25	38 mm	Water	0.25 to 10.6	100W to 1000W	View
1098407	PM150	DB25	19 mm	Air	0.25 - 11	300 mW to 150W	View
1098400	PS10Q	DB25	10 mm	Air	0.3 - 2	100 µW to 1W	View
1098398	PM150-50	DB25	50 mm	Air	0.25 - 11	300 mW to 150W	View
1098397	PM10-19C	DB25	19 mm	Water, Air (intermittent)	0.25 - 11	10 mW to 10W	View
1098394	LM-150 FS	DB25	19 mm	Air	0.25 to 10.6	100 mW to 150W	View
1098350	PS10	DB25	10 mm	Air	0.19 - 11	100 µW to 1W	View
1098346	LM-100	DB25	19 mm	Air	0.25 to 10.6	100 mW to 100W	View
1098341	PS19Q	DB25	19 mm	Air	0.3 - 2	100 µW to 1W	View
1098338	PM10V1	DB25	19 mm	Air	0.25 to 3	10 mW to 10W	View
1098336	PM3	DB25	19 mm	Air	0.19 to 11	500 µW to 2W	View
1098329	PM2	DB25	19 mm	Air	0.25 - 11	10 mW to 2W	View
1098328	LM-3	DB25	19 mm	Air	0.25 to 10.6	10 mW to 3W	View
1098320	LM-45	DB25	19 mm	Air	0.25 to 10.6	100 mW to 25W	View
1098314	PM30	DB25	19 mm	Air	0.25 - 11	100 mW to 30W	View
1098304	LM-10	DB25	19 mm	Air	0.25 to 10.6	10 mW to 10W	View
1097901	PM10	DB25	19 mm	Air	0.25 - 11	10 mW to 10W	View
