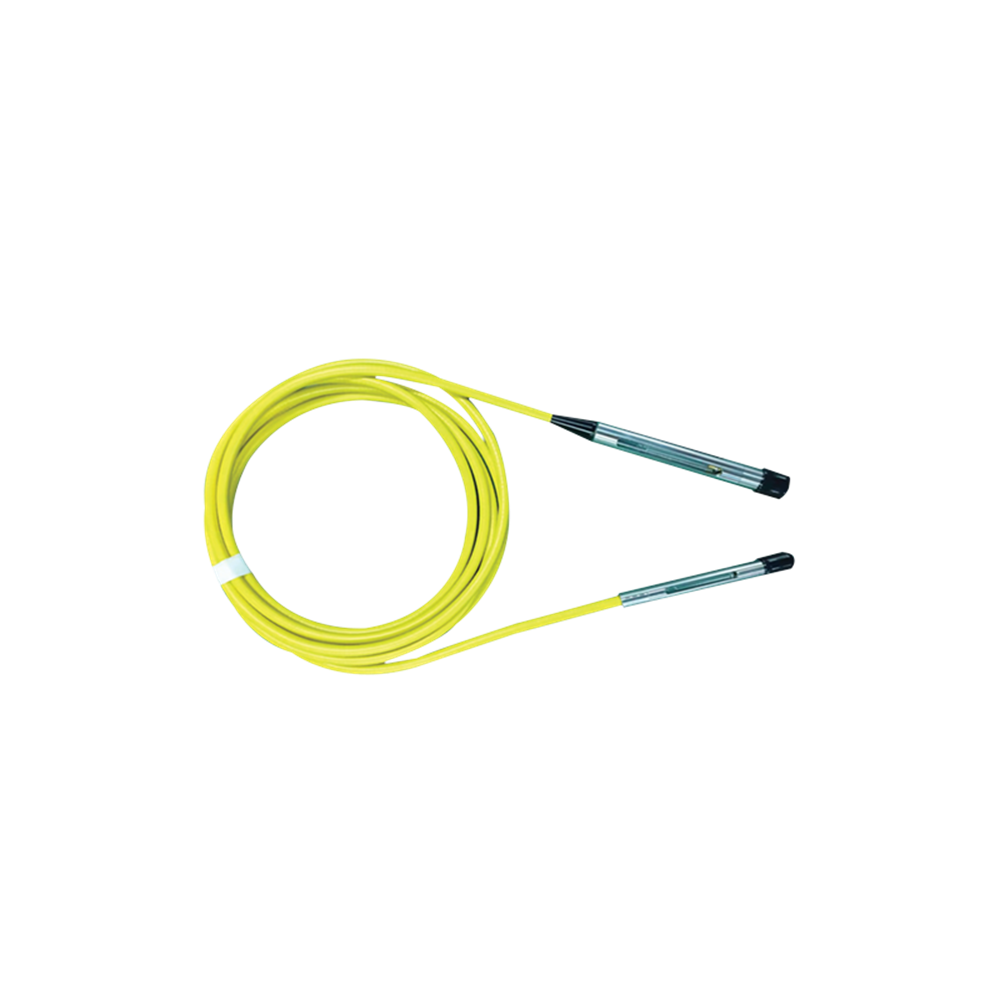

Photonic crystal fiber 이미지 확대 보기
  • Photonic crystal fiber

Photonic crystal fiber

Precilasers' photonic crystal fiber is based on NKT's photonic crystal fiber with end caps/collimators installed at both ends to achieve high damage threshold and ease of use
판매가
0
브랜드
precilasers
구매혜택
-
할인 :
M
적립 마일리지 :
Wavelength Range 1064nm±20nm / 813nm±20nm / 532nm±20nm / 420nm±20nm
Features
Low loss
Polarization Maintaining
Single Mode At All Wavelength
Radiation Hardened Pure Silica Fiber
Wavelength-independent mode field diameter
Application
Mode Filtering
Short Pulse Output
Multi-Wavelength Transmission
Single Mode Polarization Maintaining Fiber Pigtail
Single-Mode Polarization-Maintaining Short Wavelength Transmission
Photonic crystal fiber
0
총 상품금액
총 할인금액
Total
5,000원 더 구매하면 무료 배송!
무료 배송!(2,500원을 절약했어요.)
delivery_icon
  • 0원
  • 50,000원
  • 배송비 계산 기준
    바로구매

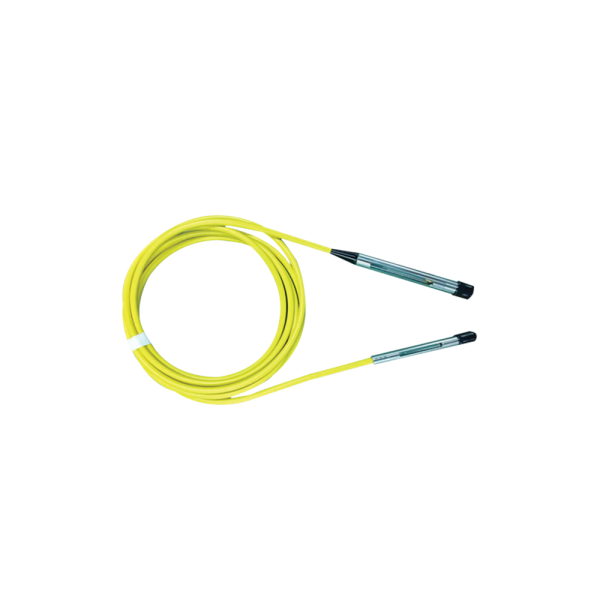

    Photonic crystal fiber

    Precilasers' photonic crystal fiber is based on NKT's photonic crystal fiber with end caps/collimators installed at both ends to achieve high damage threshold and ease of use



    Main parameters

    Specification

    Wavelength Range

    1064nm±20nm

    813nm±20nm

    532nm±20nm

    420nm±20nm

    Maximum Transmission Loss

    <0.6dB

    Polarization Extinction Ratio

    >18dB

    Minimum Return Loss

    >50dB

    Beam Waist Diameter(1)

    1.1±0.25mm

    Beam Divergence(Far Field)

    <1.2mrad

    Ellipticity

    >92%

    Fiber Type

    NKT Photonics LMA-PM-10 fiber

    Fiber length

    1m

    3m

    custom made

    Maximum Average Optical Power

    >30W

    Maximum Peak Power (ns pulse)

    >10 kW



    Options

    Output Mode

    End cap output, optional end caps at both ends/collimators at both ends or end cap + collimator output



    Order Model:Preci-PCF-XXXX-Y-Z1-Z2

    (1)XXXX represents the integer part of the wavelength

    (2)Y is the length of the optical fiber

    (3)Z1, Z2 are the output types of both ends, if it is an end cap, it is E, if it is a collimator, it is C



    For example, a 1064nm 3m long photonic crystal fiber with an end cap at one end and a collimator at the other end is Preci-PCF-1064-3-E-C. If both ends are collimators, it is Preci-PCF-1064-3-C-C.

    Note:
    (1) The input/output is a collimator or end cap, and an external lens with adjustable position is required to couple the external beam into the photonic crystal fiber
    (2) When coupling light from space into a photonic crystal fiber, the coupling efficiency needs to be adjusted from a low power. Otherwise, high power directly injected into the photonic crystal fiber may damage the photonic crystal fiber.


    定制图标Higher power, more wavelengths, customizable solutions
