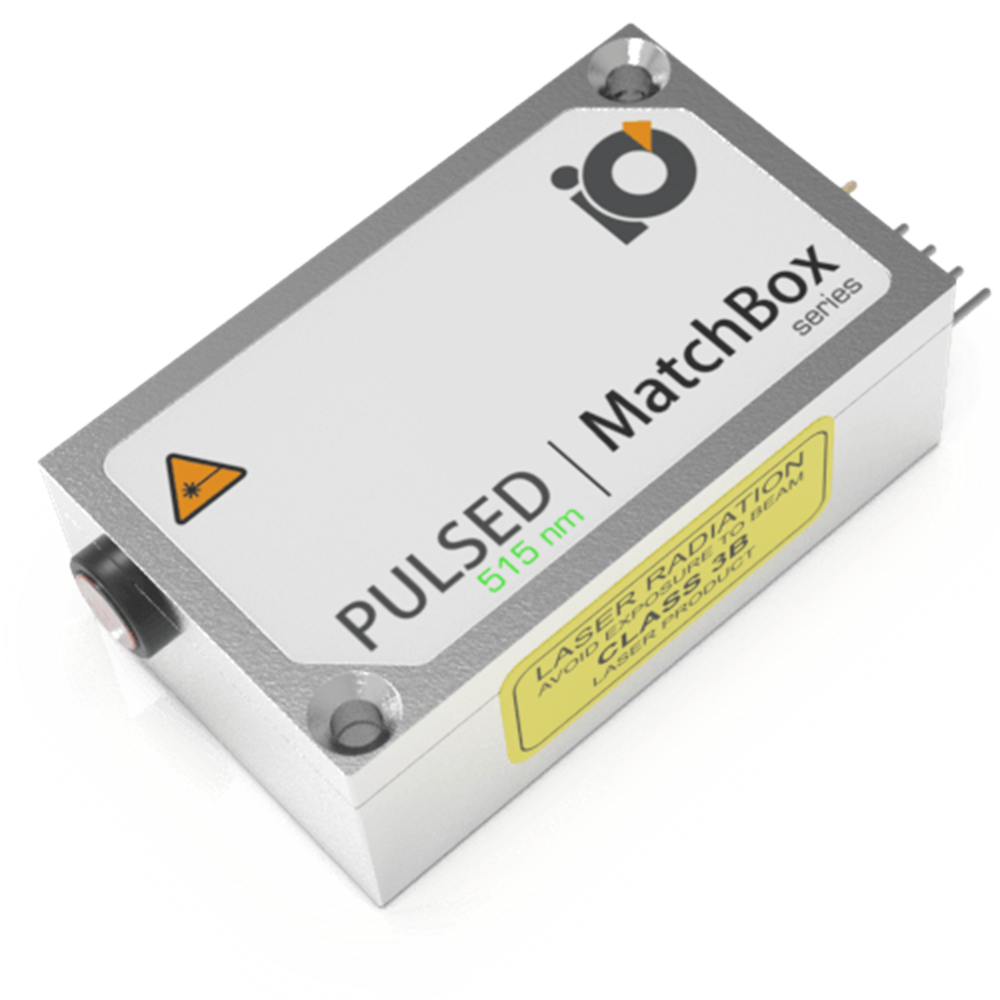

515 nm SLM Laser

판매가: 0원

브랜드: Intergrated Optics

구매혜택: -
할인 :
M
적립 마일리지 :

모델명: 0515L-21C-NI-NT-NF

원산지: Lithuania

: Passive Q-Switch / Free-space

: Central wavelength, nm: 515.0

: Spectral line width FWHM, pm: 0.8

: Output power, mW: As per request

: Power stability, % (RMS, 8 hrs): 0.5

: Pulse-to-pulse stability, %: 4

: Warranty, months (op. hrs): 14 (10000)

515 nm SLM Laser

0원

총 상품금액

총 할인금액

Total

5,000원 더 구매하면 무료 배송!

무료 배송!(2,500원을 절약했어요.)

0원

50,000원

배송비 계산 기준

바로구매

상세정보
교환및반품
상품후기 (0)
상품문의 (0)

515 nm SLM Laser

Description

514.5 nm nanosecond SLM laser is a substitute for Argon lasers in many applications, including sorting, illumination, and pump-probe spectroscopy. True SLM operation (each pulse is emitted in the same longitudinal mode) ensures high pulse-to-pulse stability, low jitter, and extremely stable harmonic generation, which ensures consistent experiment results. The 514.5 nm laser is offered in a very compact package, which is based on the famous MatchBox platform. Pulse-on-demand operation makes this laser suitable for various setups, where synchronization is a must.

Other potential applications of this laser are:

Pumping of Ti:Sapphire lasers
Supercontinuum generation
Deep UV generation
Raman shift excitation in H2 filled fibers

SLM operation ensures high pulse-to-pulse stability, low jitter, and extremely stable harmonic generation. Dual-wavelength option 1029+514.5 nm is available on request.

Current configurations in production:

Variant	Pulse duration, ns	Pulse energy, µJ	Peak power, kW	Repetition rate, kHz
1	2,4	15	6	10
2	3,5	7	2	35

Other parameters can be developed based on customer specifications. Please refer to the table below for possible parameter ranges.

Specifications

Last edited on: 23 June 2023

Parameter	Minimum Value	Typical Value	Maximum Value
Central wavelength, nm	514.9	515.0	515.1
Longitudinal modes	-	Single	-
Spectral line width FWHM, pm	0.5	0.8	1
Output power, mW	-	As per request	150
Pulse duration, ns (FWHM)	1.5	3	4
Repetition rate, kHz	-	As per request	35
Pulse energy, µJ	3	As per request	15
Power stability, % (RMS, 8 hrs)	-	0.5	1
Pulse-to-pulse stability, %	-	4	6
Transversal modes	-	TEM00	-
Beam width (1/e2), mm	-	0.8	-
Beam height (1/e2), mm	-	0.9	-
Horizontal beam divergence, mrad	-	1	-
Vertical beam divergence, mrad	-	1	-
M² effective	-	1.1	1.4
Polarization direction	-	Horizontal	-
Polarization contrast	500	800	-
Control interface type	-	UART	-
Operation mode	-	APC (Free-run) or ACC (Single-Shot triggering)	-
Input voltage, VDC	-	5	-
External power supply	-	+5 V DC, 5A	-
Dimensions (L × W × H), mm	-	50 × 30 × 18	-
Beam height from base, mm	-	10.4	-
Heat-sinking requirement, °C/W	-	<0.5	-
Optimum heatsink temperature, °C	18	25	32
Warm up time, mins	-	10	-
Temperature stabilization	-	Internal TEC	-
Overheat protection	-	Yes	-
Net weight, kg	-	0.29	-
Max. power consumption, W	-	25	-
Warranty	-	14 months (10000 hrs)	-
Residual IR wavelength contrast, dB	-	10	-
Laser safety class	-	3B	-
Country of origin	-	Lithuania	-
