Laboratory modules
LAB Modules
Exail offers a range of Laboratory modules (LAB modules) for academic, industry and R&D engineers to setup their test benches using a modular approach.
LAB modules are cost-effective solutions leveraging Exail's expertise in the manufacturing and integration of cutting-edge lithium niobate electro-optical modulators, fiber lasers, RF and electronics into compact modules.
Exail's LAB module family includes: continuous laser based on semiconductor and fiber cavity (LAZ-LAB), sub-nanosecond to nanosecond Electrical Pulse Generator (EPG-LAB), arbitrary waveform electrical generator (AWG-LAB), optical Modulation module (MOD-LAB) and Optical Pulse Picker (OPP-LAB).
Features
Benefits
- Modular and complementary approach
- Cost-effective solutions
- Standardized following industrial process
- High-performance based on qualified and selected components
Applications
- Fiber lasers (electrical and optical short pulse generation, optical pulse picker)
- RFoF and linear modulation
- Telecom and digital modulations schemes
- Quantum single photon generation, quantum communication and computing
- General purposes
Products
Design
Specification
Datasheet
MOD-LAB series
MOD-LAB-NIR
Modulation module for large analog/digital/pulse CW signal in the NIR window
MOD-LAB-Cband
Modulation module for large analog/digital/pulse CW signal in the C+L Bands
OPP-LAB series
OPP-LAB-NIR800
Optical Pulse Picker LAB in the Near Infra-Red 800 nm band
OPP-LAB-NIR
Optical Pulse Picker LAB in the Near Infra-Red 1060 nm band
OPP-LAB-Cband
Optical Pulse Picker LAB in the Cband

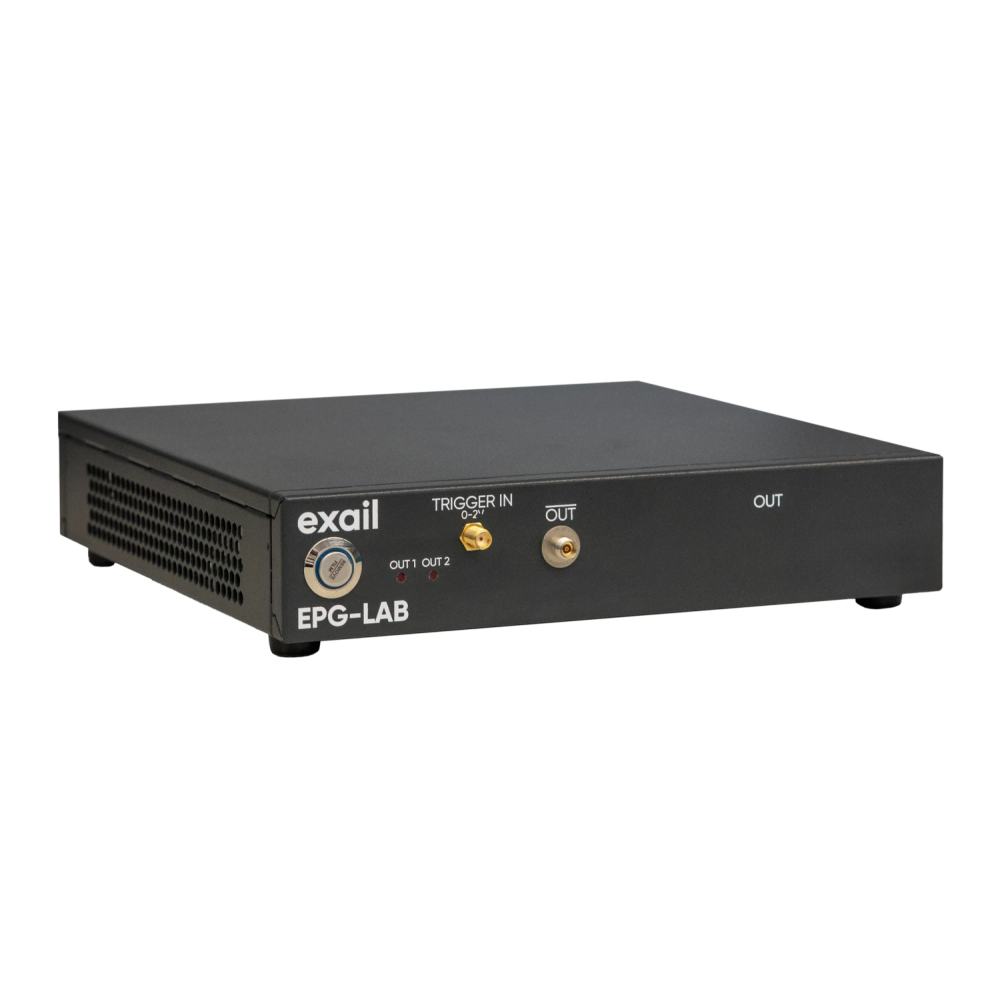

EPG-LAB series
EPG-LAB-30ps
30 ps to 100 ps adjustable pulse duration Electrical Pulse Generator
AWG-LAB series
AWG-LAB
200 ps to 1 us from single shot to 1 MHz, 14 bits
LAZ-LAB Series
LAZ-LAB-NIR
CW DFB lasers operating wavelength from 780 nm to 1080 nm Matching laser for LiNbO3 modulators
LAZ-LAB-CLband
CW full C-Band or L-band tunable laser
LAZ-LAB-NL-1550.12
1550.12 nm wavelength very low linewidth contonuous wave laser module
