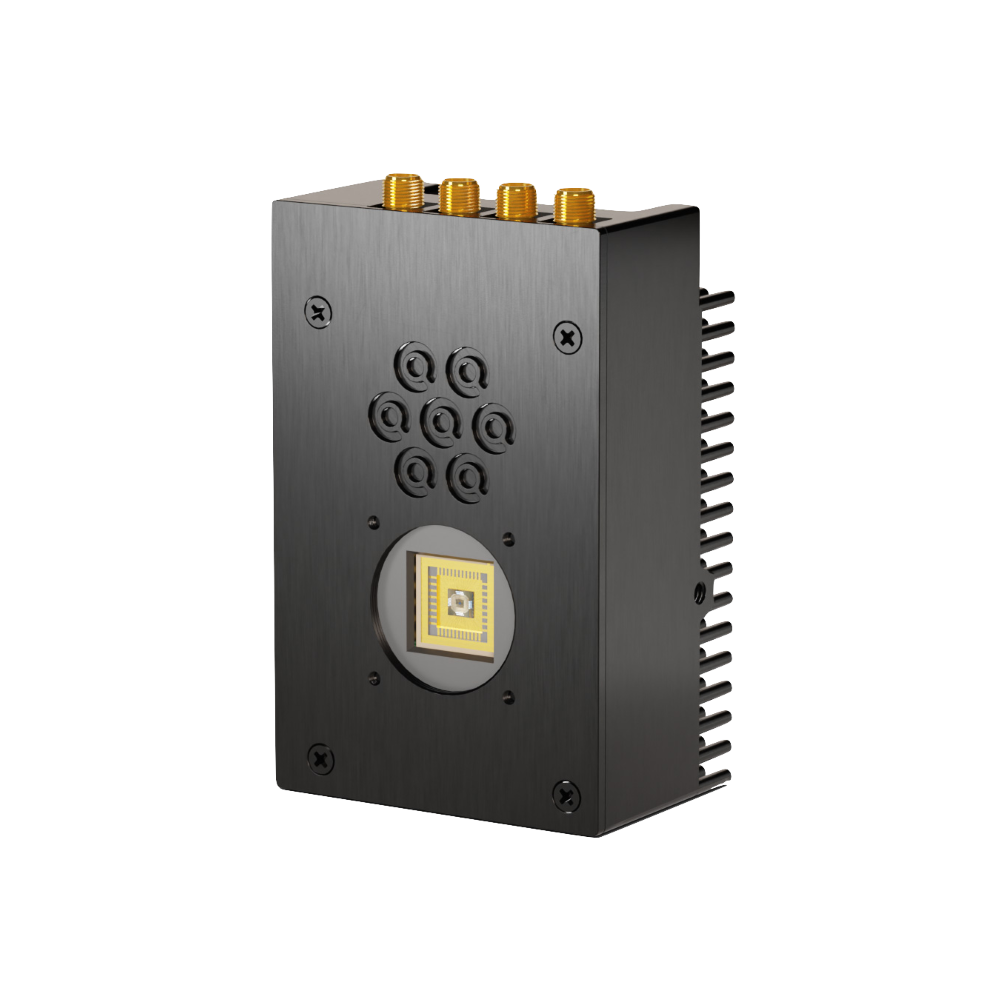

SPAD 93 - A high-performance single-photon detector array.

SPAD 93 is a photon detector with a 93 single-photon avalanche diode (SPAD) array with best-in-class performance. It features both the capability of direct photon-counting and photon-time tagging to enable a wide range of single-photon detection appl

판매가: 0원

브랜드: PI IMAGING

구매혜택: -
할인 :
M
적립 마일리지 :

모델명: SPAD93G, SPAD93

원산지: Switzerland

SPAD 93 - A high-performance single-photon detector array.

0원

총 상품금액

총 할인금액

Total

5,000원 더 구매하면 무료 배송!

무료 배송!(2,500원을 절약했어요.)

0원

50,000원

배송비 계산 기준

바로구매

상세정보
교환및반품
상품후기 (0)
상품문의 (0)

SPAD 93

A high-performance single-photon detector array.

Ideal point detector

Wide detection spectra and low noise

High dynamic range

Plug and play

SPAD 93, advanced photon detector array

*Other product names: SPAD93G, SPAD93.
For consistency and clarity, note that these names refer to the same product.

Ideal point detector

SPAD 93 is the ideal solution for a confocal scanning setup. Each pixel can act as a virtual pinhole, increasing resolution and contrast.

Wide detection spectra and low noise

Our single-photon detectors are fabricated in a state-of-the-art CMOS process and offer an ultra-low dark count rate of less than 100 cps. Microlenses enhance the detection with a peak sensitivity of over 45%.

High timing resolution

Real-time processing of photon events occurs in a field-programmable gate array. The detector can process up to 2.3 Gcps over the whole array. Time-to-digital converters per pixel enable a fine timing resolution down to 20 ps with at a maximum photon flux of 70 Mcps.

Plug and play

The system requires just a 5V power adapter and USB3 cable to run. For full flexibility, 4 additional control lines can be connected to the SMA connectors. The SM1 optical port, the M2.5 and the M4 screw mounting positions offer a flexible integration into an existing optical setup.

The detector is bundled with an intuitive software interface. The software gives easy access to all functionalities offered by our detectors, allows for fast prototyping and makes acquiring single-photon data easier than ever.

For the advanced users, we offer full remote control through a standard TCP/IP interface. This enables the user to take full control of the system from any TCP/IP capable software package, such as Matlab, Octave, Labview and Python.

Technical specifications

Properties	SPAD 93
Array size	93 pixels
Peak detection probability	55% @ 520 nm
Wavelength window	440-660 nm
Fill factor (collimated light)	>80%
Median dark count rate	<100 cps
Maximum pixel count rate	25 Mcps
Maximum system bandwidth (USB-3)	3 Gbps
Maximum photon throughput (counting mode)	2.3 Gcps
Maximum photon throughput (timing mode)	70 Mcps
Timing resolution TDC system	20 ps
Power consumption	<2 W
External SMA triggers	dwell clock line clock frame clock laser clock
Peltier cooling	✔
Protective glass window	✔
Robust metal enclosure	✔
